Earth-fault and short-circuit indicators
Type EK-series

The earth-fault and short-circuit indicators of the type EK-series can be used in radial networks with one input and open-ring networks which are solidly earthed or low resistance earthed. The indication of short-circuits is done by one or three LEDs while earth-faults are indicated by a separate LED.
The display unit can be powered by an exchangeable lithium battery, an external AC- oder DC-power supply or by a combination of external power supply and battery. When the device is not equipped with a lithium battery the power supply must not fail during fault situations.

The devices can be equipped with up to three relay. A second relay can be used for a separate remote indication of earth-faults and short-circuits. The third relays has the function to remotely indicate a weak battery.

The EK-series is available in different versions which differ in the way if the sensors are connected to the display unit by copper cable or by fibre optic cable. All sensors are divisible and can be retrofitted on the cable.

Connection to EKL3.2 EKL800x EKS3.2
Short-circuit sensor type LK
fibre optic cable
X X
Short-circuit sensor type SK
copper cable
Earth-fault sensor type LE
fibre optic cable
Earth-fault sensor type SE
copper cable
X   X


Each type of connection offers following advantages:

fibre optic cables: Fibre optic cables establish a potential-free connection between sensor and display unit. The trip currents must therefore be adjusted at the sensor.
copper cables: Sensors with copper cable connection must be installed on screened sections of the monitored cable. The trip current can be changed anytime at the display unit.

Order Data Article no.

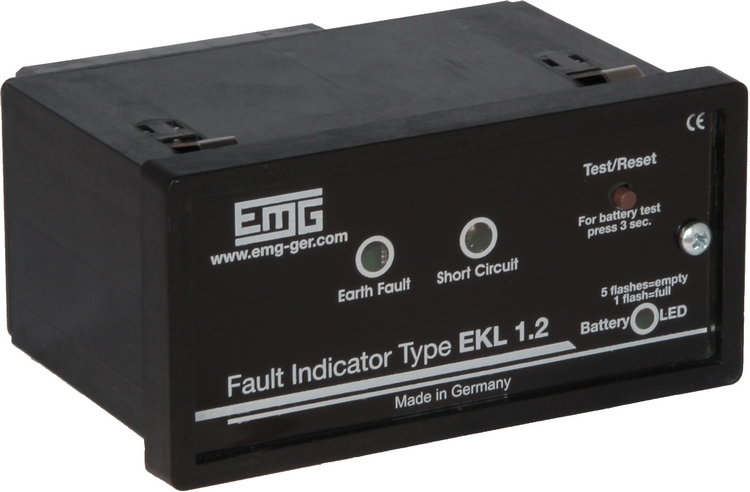

Type EKL1.2 | panel-mounted 22.50.10
Type EKL1.2 | panel-mounted, two relays 22.51.10
Type EKL1.2 | surface-mounted, two relays 22.56.20
Type EKL1.2 | surface-mounted, three relays 22.57.20

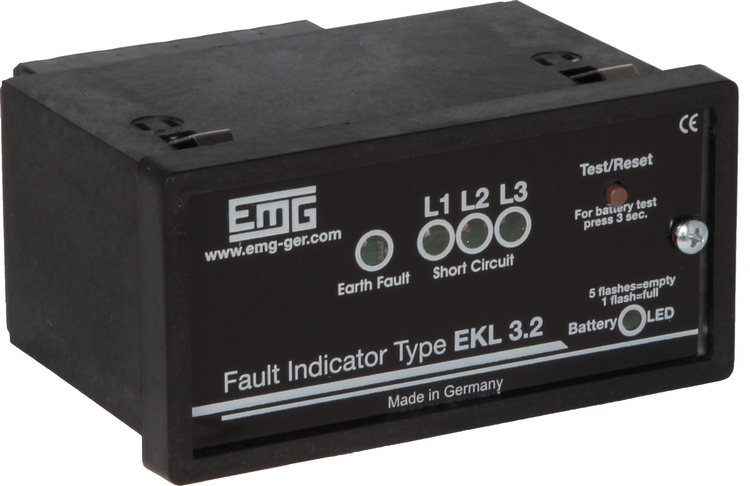

Type EKL3.2 | panel-mounted 22.30.10
Type EKL3.2 | panel-mounted, two relays 22.31.10
Type EKL3.2 | surface-mounted, two relays 22.36.20
Type EKL3.2 | surface-mounted, three relays 22.37.20

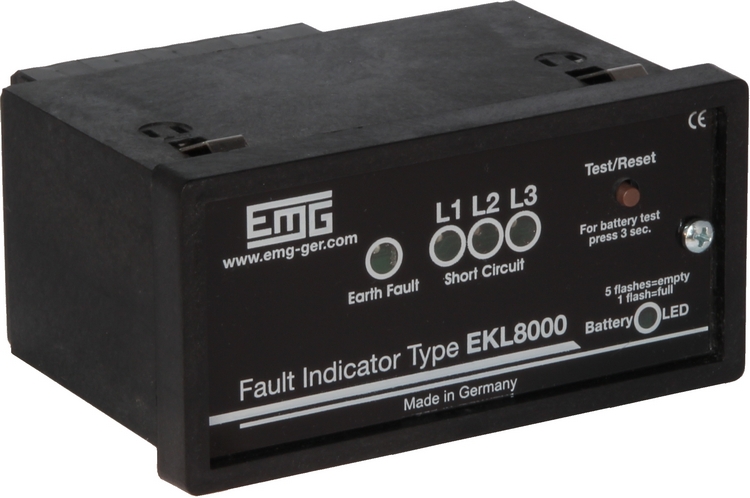

Type EKL8000 | panel-mounted 22.21.10
Type EKL8001 | panel-mounted, two relays 22.22.10
Type EKL8001 | surface-mounted, two relays 22.23.20
Type EKL8002 | surface-mounted, three relays 22.24.20
Type EKS1.2 | panel-mounted 22.60.10
Type EKS1.2 | surface-mounted, two relays 22.65.10

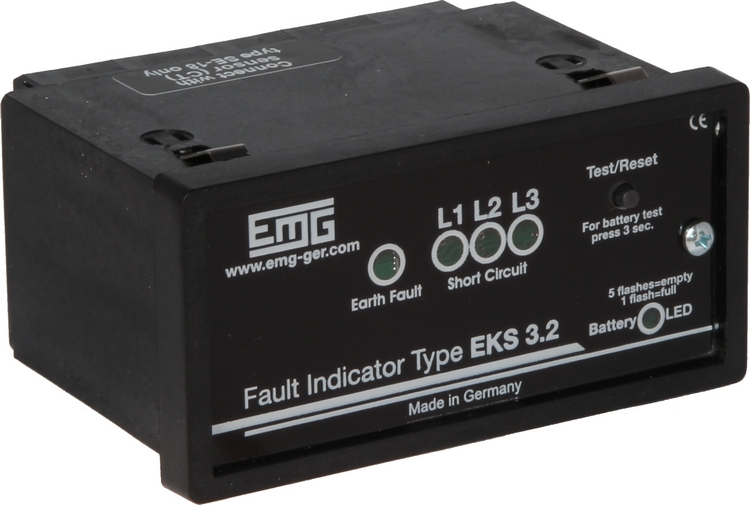

Type EKS3.2 | panel-mounted 22.40.10

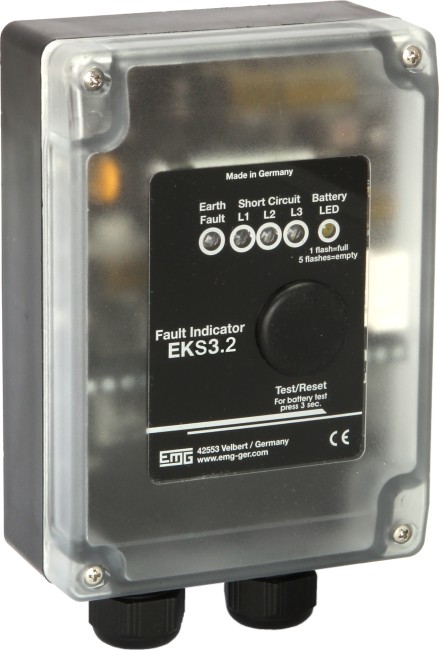

Type EKS3.2 | surface-mounted, two relays 22.45.10

Features and Benefits

Four response delays between 40 ms and 300 ms
LED indication
Passage of 2nd short-circuit by double blinking
Indication of permanent earth-faults by double blinking
Button to test the function of the display unit
Reset function:
– Manual
– Time: four values between 1 h and 12 h
– Remote reset contacts
– Optional: by recovering operating current (only EKL3.2 and EKS3.2)
– Optional: by recovering auxiliary power supply
Power supply:
– Lithium battery type AA 3.6 V
– Optional: 12-110V DC
– Optional: 115 / 230V AC
Contacts for remote monitoring
Permanent or wipe contact type can be selected on site
Panel-mounted version:
Optional: second relay for separate remote indication of earth-faults and short-circuits
Surface-mounted version:
Two on site configurable relays by DIP switch
Optional: third relay for remote indication of empty battery
Surface-mounted and panel-mounted housing
Optional: blinking lamp type BL4.1 / BL6 for outdoor indication
