Accessories

for HR-Systems

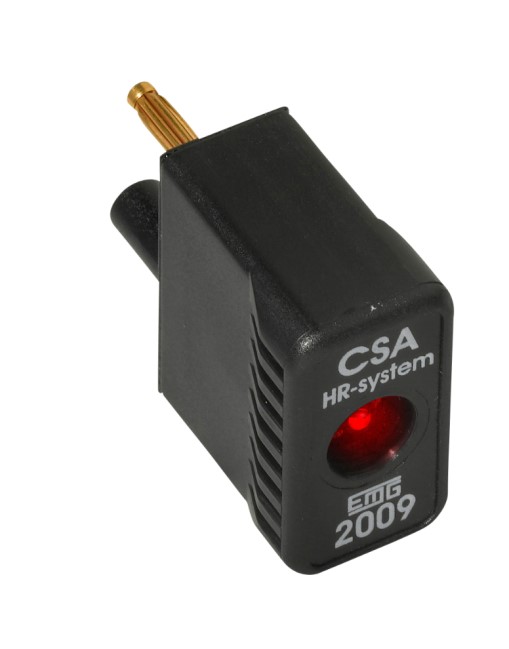

Voltage indicator type CSA: The voltage indicator is used for voltage indication in HR voltage detection systems and is tested and manufactured according to the requirements of IEC 61243-5. If the voltage is present the LED of the indicator plug blinks. For the operation no power supply is required.

Epoxy resin insulator with capacive pick-off: The insulator is used for detecting voltage in medium voltage systems and corresponds in its dimensions to normal insulators.

Connection wire: To connect the insulator or bushing with the voltage module type WM, all kinds of cables according to IEC 61243-5 are available. On one side the connection cables are equipped with a fl at plug 6.3 x 0.8 mm and a rubber seal, and on the other side with a 4 mm diameter plug.
