PRODUCT INFORMATION

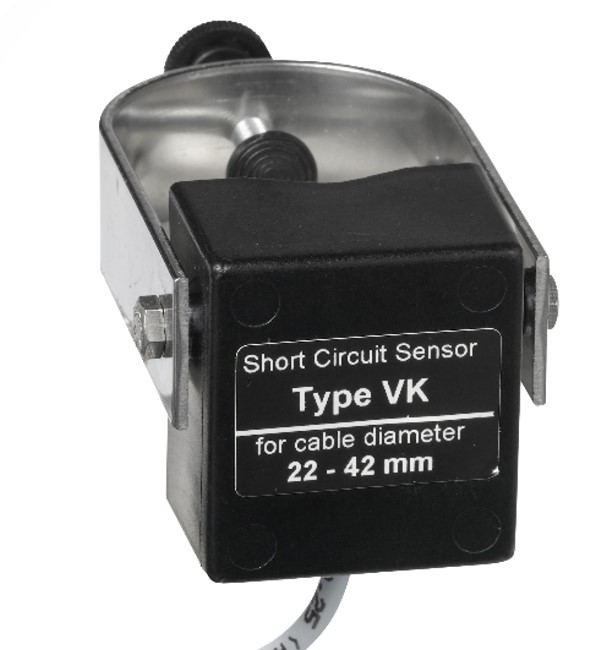

Sensor for short-circuit
Type VK
This sensor is used for short-circuit detection. The connection between the sensor and the display unit is done by copper cable. The short-circuit sensor must be assembled on screened cables. The sensor is mounted on the conductor or cable with a divisible stainless steel bracket and can be retrofitted.
| Order Data | ||
| Type VK (round conductor) | | 5-15mm | 12.40.11 |
| Type VK (round conductor) | | 15-25mm | 12.41.11 |
| Type VK (round conductor) | | 22-42mm | 12.42.11 |
| Type VK (round conductor) | | 40-50mm | 12.43.11 |
| Type VK (round conductor) | | 50-65mm | 12.44.11 |
| Type VK (flat conductor) | | up to 40x10mm | 12.45.11 |
| Type VK (flat conductor) | | 40x10 to 60x15mm | 12.46.11 |
Features and Benefits
Connection by copper cable (standard: 3 m)
Energy of the trip current of the sensor can be used to power short-circuit indicators without auxiliary power supply
One fixed trip current
– Optionally, different trip currents can be selected with a 7-step rotary switch
(300 / 400 / 500 / 600 / 800 / 1000 / 1200 A)
