PRODUCT INFORMATION
EARTH-FAULT indicator
TypE VN-E
The earth-fault indicator can be used in radial medium voltage networks with one input and open-ring networks. The network has to be solidly earthed or low resistance-earthed. The indication unit is directly mounted on the 3-core-cable with cable ties. The indication of the earth-fault is done by an LED indicator. The earth-fault sensor measures the sum current of the three conductors. The indicator is divisible. Therefore the short-circuit indicator can
be retrofitted on the cable.

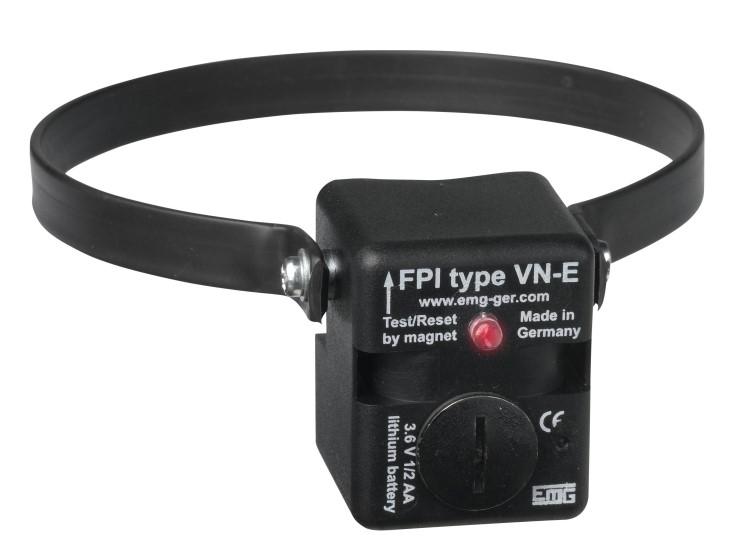

The earth-fault indicator type VN-E consists of one sensor with integrated indication.
It is powered by an exchangeable lithium battery.
| Order Data | ||
| Type VN-E | | surface-mounted | 31.20.10 |
Features and Benefits
One trip current between 10 and 160 A
The function of the display device can be tested with a magnet
Reset function:
– Manual by magnet
– Time: one value between 1 and 16 h
– Optional: by recovering operating current
Response delay: One value between 40 and 300ms
Power supply: lithium battery type 1/2 AA 3.6 V
LED indication
Very robust and strong
Completely casted and sealed (IP67)
