Voltage indicator

Type B / BR / BP / BF / BFP

These voltage indicators can be used in medium voltage networks with a rated voltage of 5 kV to 36 kV. Their function is a permanent indication of the voltage status of the respective core. A flashing lamp indicates the voltage status. Depending on the installed conductor and operation site, there are different ways of installing the voltage indicators.

The devices are designed for indoor use.

VOLTAGE INDICATOR
TYPE B

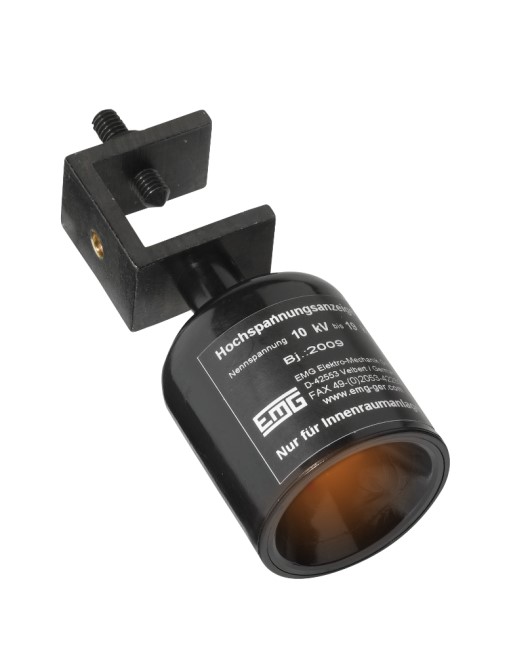

This voltage indicator is mounted on unscreened flat conductors. The indicator is used when the indicator is located in a visible place and can be viewed directly.

VOLTAGE INDICATOR
TYPE BR

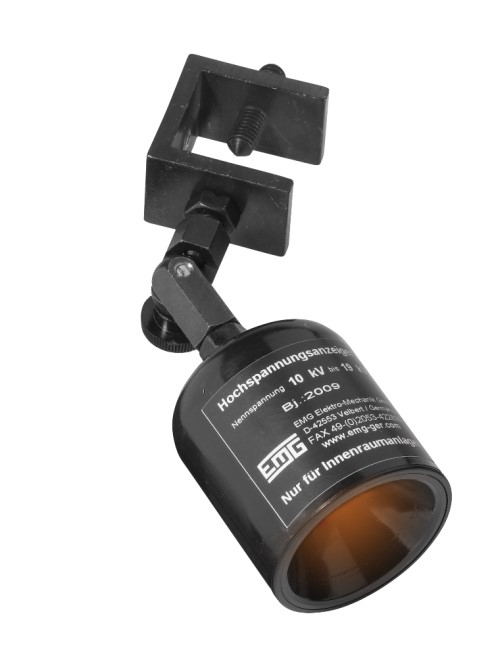

This voltage indicator is mounted on unscreened flat conductors and is equipped with a joint. The display can therefore be mounted in places which are poorly accessible.

VOLTAGE INDICATOR
TYPE BP

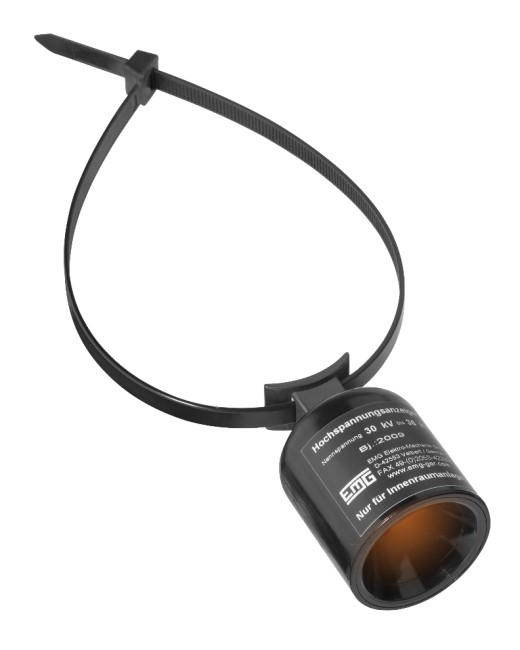

This voltage indicator is mounted directly on unscreened cables with cable ties. This version is intended for round conductors.

VOLTAGE INDICATOR
TYPE BF

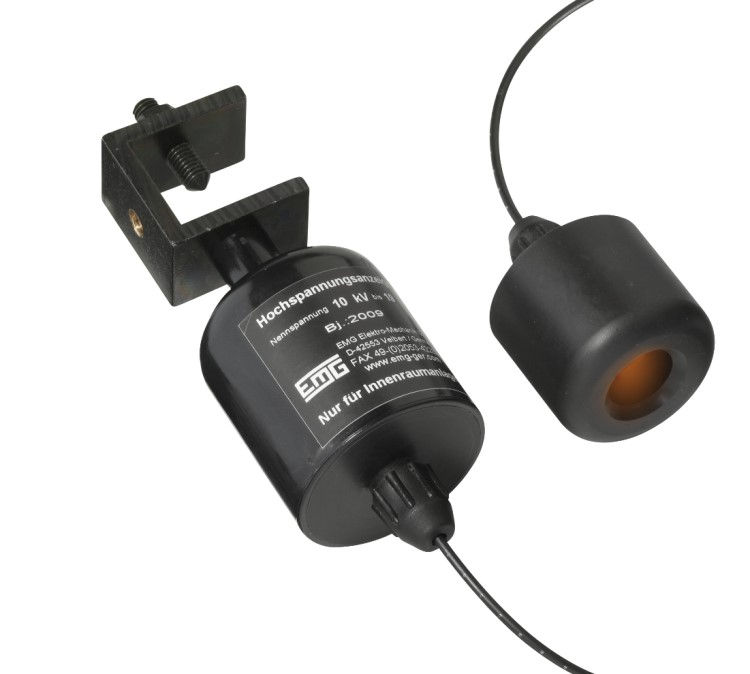

This voltage indicator is used when the indicator is not directly visible. The information from the indicator is potential-freely transmitted through a fibre optic cable to a display device. The sensor of this voltage indicator is mounted on unscreened flat conductors.

VOLTAGE INDICATOR
TYPE BFP

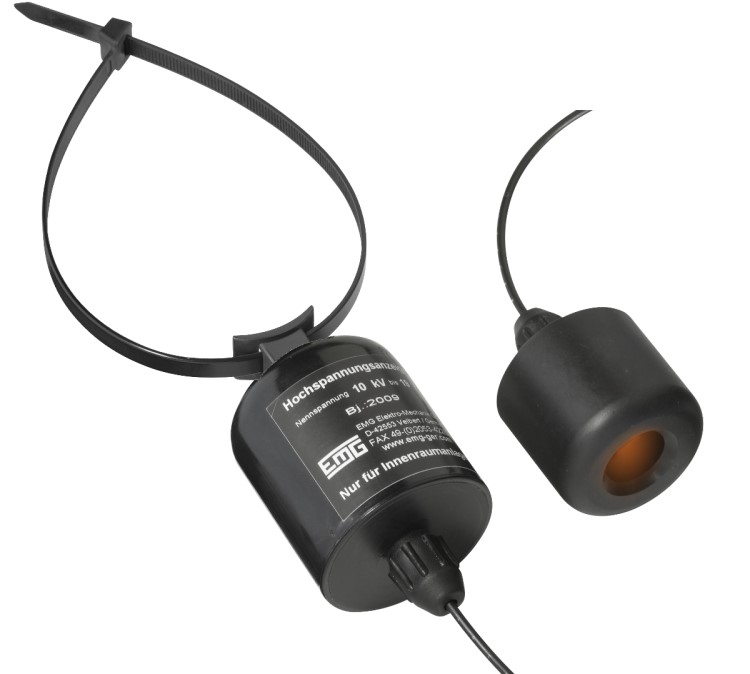

This voltage indicator is used when the indicator is not directly visible. The information from the indicator is potential-freely transmitted through a fibre optic cable to a display device.
The sensor of this voltage indicator is mounted on unscreened cables by cable ties. This version is intended for round conductors.

Order Data
Type 5-9 kV 10-19 kV 20-29 kV 30-36 kV
Type B (flat conductor) 30.04.01 30.04.02 30.04.03 30.04.04
Type BR (flat conductor) 30.06.01 30.06.02 30.06.03 30.06.04
Type BP (round conductor) 30.07.01 30.07.02 30.07.03 30.07.04
Type BF (flat conductor) not available 30.08.02 30.08.03 30.08.04
Type BFP (round conductor) not available 30.09.02 30.09.03 30.09.04

Features and Benefits

Rated voltage range: between 5 kV and 36 kV
Must be mounted on unscreened cables or flat conductors
Neon flashing light
No power supply required
For indoor use
